The most common well pump ontario off grid sizing mistake is reading the 600W label on a 1/2 HP submersible pump and specifying a 1,000W inverter, because the pump does not draw 600W at startup, it draws approximately 2,800W for 300 to 500 milliseconds as the motor’s inrush current pulls the rotor up to operating speed, and a 1,000W inverter trips its overload protection every single time the pressure switch opens.
A property owner on Stone Road North in Guelph, Wellington County installed a 1/2 HP submersible pump at 60 metres depth as the primary well pump ontario off grid water supply for her year-round cabin in fall 2022. Her inverter was a 2,000W continuous PSW unit, correctly sized for her LED lighting, laptop, DC fridge, and propane furnace blower. She added the well pump to the system, assuming the 600W running draw was within the inverter’s 2,000W continuous rating.
On commissioning day, the inverter tripped its overload protection on every pump startup. She contacted me the following week. Her Victron SmartShunt confirmed the fault: the pump drew approximately 2,800W peak for approximately 400 milliseconds on every startup cycle, a motor inrush event that exceeded the inverter’s surge capacity under the sustained multi-cycle load of normal household water use. The inverter’s protection circuit activated on the second or third consecutive startup within a short period, logging an overload fault on the SmartShunt display.
I specified a SoftStart Well installed at the pump control box. The SoftStart ramps the motor voltage from zero to full over approximately 3 seconds, eliminating the instantaneous inrush and replacing the 2,800W startup spike with a smooth 900W ramp. Her SmartShunt confirmed the change immediately: pump startup peak dropped from 2,800W to 890W, well below the inverter’s 2,000W continuous rating. The well pump ontario off grid system has not tripped the inverter since installation. Total SoftStart Well cost: approximately $180 installed. See our Ontario solar sizing guide before sizing any well pump ontario off grid system.
The well pump ontario startup surge: why 600W running draw hides a 2,800W inverter event
| Metric | Without SoftStart | With SoftStart Well | Ontario verdict |
|---|---|---|---|
| Startup surge | 2,800W for 300-500ms | 900W over 3 seconds | SoftStart saves the inverter ✓ |
| Running draw | 600 to 800W | 600 to 800W | Identical, no efficiency loss ✓ |
| Minimum inverter | 3,000W continuous | 2,000W continuous | Saves $400 to $600 in inverter cost ✓ |
| Battery voltage sag | ~0.8V on 12V bank | ~0.2V on 12V bank | Lights stop flickering ✓ |
| Generator compatibility | Stalls 2,500W generator | 2,400W combined load | Mandatory for generator backup ✓ |
A 1/2 HP submersible pump draws approximately 600 to 800W while running. Its motor inrush at startup draws 5 to 7 times the running current (Locked Rotor Amps), at 120V with 5A running current, LRA = 25 to 35A, translating to approximately 2,800W for 300 to 500 milliseconds (this figure varies with pump depth, pipe length, and Ontario groundwater temperature , 2,800W is typical for a 1/2 HP submersible at 60m depth). This is a current surge, not a sustained load. A 2,000W inverter with a 4,000W surge rating handles individual inrush events but may trip on the sustained multi-start load of normal household use, particularly when the pressure tank is undersized and the pump starts frequently.
Without a SoftStart, the inverter must account for the full 2,800W startup surge, requiring a minimum 3,000W continuous inverter at approximately $400 to $600 more than a 2,000W unit. With a SoftStart Well, the inverter sees only a 900W ramp over 3 seconds, well within a 2,000W inverter’s continuous rating. The SoftStart Well costs approximately $120 to $180 installed. For any new well pump ontario off grid system on a 2,000W inverter, the SoftStart Well is the correct specification. See our solar charge controller guide for the full system sizing that the well pump must be included in.
The SoftStart Well: how a $180 device replaces a $400 inverter upgrade
Safety Note: SoftStart Well Installation. The SoftStart Well must be installed by a qualified electrician or licensed well pump technician. Incorrect wiring can cause motor damage, overheating, or fire. All well pump electrical work in Ontario requires an ESA permit. Never attempt to install or modify well pump wiring yourself.

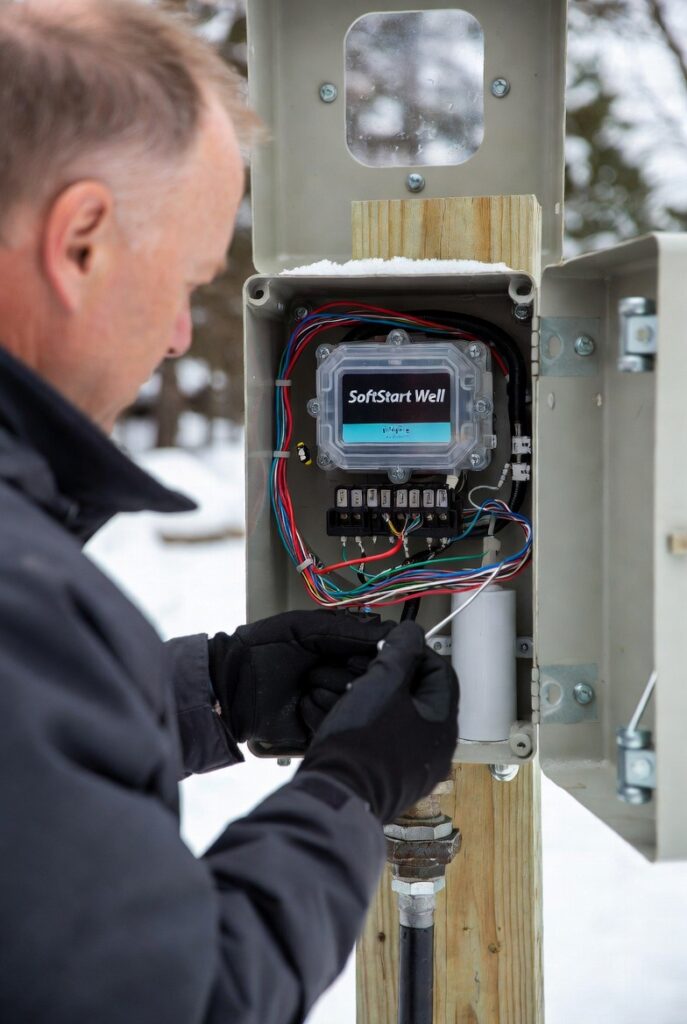

The SoftStart Well installs in the pump control box between the power supply and the pump motor. Its electronic soft-start circuit ramps the motor voltage from zero to full over approximately 2 to 3 seconds, eliminating the instantaneous inrush current and replacing the 2,800W spike with a smooth 900W linear ramp. Effect on the battery bank: voltage sag during startup drops from approximately 0.8V on a 12V bank to approximately 0.2V, the difference between lights flickering and a seamless water draw. Effect on the pump motor: reduced mechanical stress on the pump shaft and impeller, extending motor service life in Ontario’s 4 to 8°C groundwater conditions where cold water viscosity adds to startup resistance.
The Stone Road North Guelph result demonstrates the SoftStart’s value clearly. A 2,000W inverter that tripped on every pump startup, confirmed at 2,800W by the SmartShunt, became a stable, never-tripping system after the $180 SoftStart installation. The inverter did not need to be replaced. The pump did not need to be replaced. A single component converted an unusable well pump ontario off grid system into a reliable one. The SoftStart Well is the correct first addition to any existing installation where the inverter is tripping on pump startup.
Pro Tip: After installing a SoftStart Well, use the SmartShunt to record the new startup peak before and after, the before/after comparison documents exactly what the SoftStart saved. The Stone Road North Guelph system: 2,800W peak confirmed on the SmartShunt before installation, 890W peak confirmed after. That 1,910W reduction is the margin between a tripping inverter and a reliable one. Run three to four pump cycles immediately after installation while watching the SmartShunt display live. If the peak is above 1,200W on a 2,000W inverter, the SoftStart may not be fully commissioned, check the ramp time setting on the unit.
The well pump ontario pressure tank rule: 44 gallons, 4 starts per day, 3Wh of energy
The pressure tank is the second variable in any well pump ontario off grid system after the SoftStart. A standard 20-gallon pressure tank provides approximately 5 to 7 gallons of drawdown before the pressure switch opens and the pump starts. For a 2-person household drawing approximately 50 gallons per day, this means approximately 8 to 10 pump starts per day, each one a 900W ramp with the SoftStart, or a 2,800W spike without it.
A 44-gallon pressure tank provides approximately 12 to 15 gallons of drawdown, reducing pump starts to approximately 3 to 4 per day for the same household. Note that actual drawdown depends on the pressure switch settings (typically 30/50 psi or 40/60 psi) and the tank’s pre-charge air pressure , a tank with incorrect pre-charge will not deliver its rated drawdown regardless of size. Fewer starts mean less inverter stress, less battery micro-cycling, and less pump motor wear.
A year-round off-grid property owner on Whitelaw Road in Guelph, Wellington County specified a complete well pump ontario off grid system from scratch in spring 2023. His design: SoftStart Well from day one, 44-gallon pressure tank, 2,000W PSW inverter, 200Ah Battle Born heated LFP batteries. His 44-gallon tank provides approximately 13 gallons of drawdown before the pump starts. His household of two adults uses approximately 50 gallons per day, resulting in approximately 3 to 4 pump starts per day versus the 15 to 20 starts a 20-gallon tank would require.
His SmartShunt logs confirm: pump startup events show 910W peak, lasting approximately 3 seconds, occurring approximately 4 times per day in winter. Total daily pump start energy: approximately 3Wh, invisible on the SmartShunt’s daily load summary. His comment: “The pressure tank upgrade was the best $200 I spent, the pump barely runs and the inverter never complains.” See our solar battery bank guide for the full battery bank sizing that must include the well pump ontario load.
Generator integration: running the well pump on backup power during gray streaks
During Ontario January gray streaks, the battery bank SoC may drop to the point where a pump startup, even at 900W with the SoftStart, risks pulling the bank below its LVD threshold. The correct protocol: start the off-grid generator before high-draw water use during a gray streak. A 2,500W propane generator running a 1,500W battery charger simultaneously with a SoftStart-equipped 900W pump start = 2,400W total, within the generator’s continuous rating. Without the SoftStart, generator + 2,800W pump surge = the generator stalls. The SoftStart is therefore mandatory for any well pump ontario off grid system that uses a generator as gray streak backup.
The generator-pump coordination protocol prevents the most common gray streak failure mode: a low bank at 25% SoC attempting a pump startup and tripping the LVD, leaving the property without water for the duration of the streak. The sequence: SmartShunt shows 30% SoC, start the generator, let it run 15 minutes to bring the bank to 40% SoC, then shower. This is the same SoC trigger protocol from the off-grid generator guide. See our off grid generator guide for the generator sizing and SoC trigger protocol that works with this well pump ontario system.
NEC and CEC: Ontario permit requirements for permanent well pump electrical installations
NEC 230 and NEC 348 govern the electrical supply circuit to any well pump motor. The pump’s branch circuit must be sized for 125% of the pump motor’s full-load current, for a 1/2 HP pump drawing approximately 8A running current at 120V, the branch circuit minimum is 10A continuous with a 15A breaker. The SoftStart Well’s installation wiring must comply with the same branch circuit requirements. All outdoor-rated cable, conduit where required, and appropriate weatherproof junction boxes are mandatory for any permanently installed well pump ontario wiring from the inverter AC output to the pump control box. Contact the NFPA at nfpa.org for current NEC 230 and NEC 348 requirements for well pump branch circuit installations in off-grid residential applications.
CEC Section 64 governs electrical installations in Ontario. A permanently installed well pump ontario connected to an off-grid inverter requires an ESA permit. The permit application must identify the pump motor horsepower, the inverter AC output circuit specifications, the branch circuit wiring and protection, and the SoftStart Well installation if applicable. The well driller and pump installer must hold a valid Ontario well contractor licence under the Ontario Water Resources Act. All pump electrical connections at the wellhead must be inspected by the ESA as part of the permit process. Contact the Electrical Safety Authority Ontario at esasafe.com before beginning any permanent well pump ontario electrical installation.
The well pump ontario verdict: SoftStart, 44-gallon tank, SmartShunt trigger, generator protocol
- Ontario off-grid cabin owner whose inverter is tripping every time the pump starts: install a SoftStart Well before replacing the inverter. The Stone Road North Guelph result confirms the failure mode: 2,800W startup spike confirmed on the Victron SmartShunt, inverter tripping on every cycle. A SoftStart Well at approximately $180 installed dropped the startup to 890W and ended every trip event permanently. The inverter, the battery bank, and the pump are all unchanged. Do not size up to a 3,000W inverter until the SoftStart option has been evaluated, it almost always costs less.
- Ontario off-grid property owner designing a new well pump ontario system from scratch: specify the SoftStart Well, a 44-gallon pressure tank, a 2,000W PSW inverter, and a Victron SmartShunt on day one. Add Battle Born heated LFP batteries in any unheated utility room. The Whitelaw Road Guelph result: 4 pump starts per day, 910W per start, 3Wh total daily pump energy, “the pump barely runs” after two Ontario winters. See our off grid water guide for the full water system design including UV treatment and storage tank sizing.
- Ontario off-grid property owner who uses a generator during January gray streaks and has a well: verify generator-pump compatibility before the next gray streak. Formula: generator continuous rating minus charger load minus pump SoftStart ramp must be positive. For a 2,500W generator running a 1,500W charger: 2,500 minus 1,500 minus 900 = 100W positive margin. Without the SoftStart Well: 2,500 minus 1,500 minus 2,800 = negative, the generator stalls on pump startup during a gray streak shower.
Frequently Asked Questions
Q: What size inverter do I need to run a well pump off grid in Ontario?
A: A 2,000W continuous inverter with a SoftStart Well is sufficient for most 1/2 HP submersible pumps in Ontario. Without the SoftStart, the 2,800W startup surge requires a minimum 3,000W continuous inverter, approximately $400 to $600 more than the 2,000W unit. The SoftStart Well at approximately $180 installed reduces the startup to 900W, bringing it within the 2,000W inverter’s continuous rating. The Stone Road North Guelph system confirmed this: the same 2,000W inverter that tripped on every pump startup runs without issue after the SoftStart installation, documented at 890W peak on the SmartShunt.
Q: Does a SoftStart Well work with any inverter?
A: The SoftStart Well is compatible with most PSW (Pure Sine Wave) inverters used in Ontario off-grid systems. It installs at the pump control box and is independent of the inverter brand or model. The device reduces the motor inrush from 2,800W to approximately 900W regardless of the inverter connected to the system. Confirm the SoftStart Well is correctly commissioned by checking the startup peak on the SmartShunt after installation, the peak should drop from approximately 2,800W to below 1,000W on a properly installed unit. If the peak remains above 1,200W, check the ramp time setting.
Q: How big should a pressure tank be for an off-grid well in Ontario?
A: A 44-gallon pressure tank is the correct specification for most Ontario off-grid 2-person households. It provides approximately 12 to 15 gallons of drawdown before the pump starts, reducing pump starts from approximately 15 to 20 per day (with a standard 20-gallon tank) to approximately 3 to 4 per day. Each pump start is an electrical event, 900W for 3 seconds with a SoftStart, or 2,800W instantaneous without one. The Whitelaw Road Guelph result: 44-gallon tank, SoftStart Well, 4 starts per day, 3Wh total daily pump energy, essentially invisible on the SmartShunt’s daily load log.
