Four ring terminals stacked on a single battery positive stud. Each one torqued down tight. Looks solid. Feels solid. The bottom lug has 100% contact with the battery terminal face. The second lug contacts only the rim of the first. The third lug contacts only the rim of the second. The fourth lug contacts only the rim of the third. Under a 100A inverter load the contact resistance at each stacking position generates heat proportional to I²R. The stack becomes a heating element. The plastic battery casing softens around the stud. A busbar solar system is not a luxury upgrade it is the professional standard that eliminates this failure mode entirely. Before designing your distribution layout understand how much solar power you actually need the system current determines how much heat a stacked connection generates.
Busbar Solar System: The Contact Surface Area Physics
Why surface area is the only number that matters: Electrical contact resistance is inversely proportional to the true contact area between two conductors. A lug torqued flat against a smooth battery terminal face achieves near-complete contact across the full lug surface the contact resistance is at its minimum. The second lug in a stack does not contact the battery terminal face. It contacts only the raised rim of the first lug the narrow ring of copper around the perimeter of the first lug’s hole. The contact area is approximately 15-20% of the full lug face area. The contact resistance is proportionally elevated.
The resistance increase calculation: A quality single-lug connection at a battery terminal: approximately 0.0005Ω contact resistance. At 100A: P = 100² × 0.0005 = 5 watts the acceptable baseline. The second lug in a stack with 80% reduced contact area: approximately 0.0025Ω contact resistance. At 100A: P = 100² × 0.0025 = 25 watts at a single stacking interface. The third lug in a stack compounds this. the contact is between two lug rims, not between a lug and a flat terminal face. At 100A: P = 100² × 0.005 = 50 watts at the third stacking interface. The stack is generating 80 watts of heat at three connection interfaces in a space approximately the size of a battery stud.
Why the plastic casing fails: LiFePO4 battery terminals are mounted in a polypropylene casing with a thermal rating of approximately 80-100°C. A stacking interface generating 50 watts at the third lug position raises the local temperature to 150°C or above in a still-air battery enclosure above the polypropylene softening point. The plastic softens around the stud. The stud pulls into the casing under the lug stack torque load. The terminal is destroyed.
I was doing a thermal camera scan on a client system last winter standard commissioning inspection as covered in our Thermal Imaging guide. The battery positive stud had four lugs stacked inverter, MPPT, DC fuse block, and a battery monitor shunt wire. Under a 90A load the thermal camera showed: bottom lug 34°C, second lug 41°C, third lug 67°C, fourth lug 71°C. The temperature gradient up the stack was the resistance increase made visible. The third lug was operating at 33°C above the bottom lug on the same stud at the same current. That is the I²R heat trap in action. We rebuilt the distribution using a proper busbar solar system layout that afternoon. As covered in our Busbar Torque Spec guide torque alone cannot fix a stacking contact area problem the lug stack was correctly torqued and still generating 67°C at the third position.
The Lug Stacking NEC and CEC Violation
What the terminal listing actually permits: Every battery terminal and every electrical terminal in a listed product has a conductor rating stamped on it or published in the product specification. The terminal is listed for one conductor of a specified gauge range. Some terminals are listed for two conductors of specified gauges. No terminal in any listed LiFePO4 battery is listed for three or more conductors regardless of the stud size or the lug sizes used.
NEC 110.14 – USA: National Electrical Code Section 110.14 requires that electrical connections be made using terminals that are suitable for the number and size of conductors being connected. NEC 110.14(A) specifically states that terminals for more than one conductor must be identified for that purpose. A standard battery terminal listed for one or two conductors that has three or four lugs stacked on it is operating outside its listed rating regardless of the torque applied. This is a NEC 110.14 violation that voids the terminal’s listing and potentially voids the installation’s insurance coverage in a fire event.
CEC Section 12 – Canada: The Canadian Electrical Code Section 12 requires that connections be made with terminals rated for the number of conductors connected. As covered in our Busbar Torque Spec guide every connection in the busbar solar system must be torqued to specification but torque cannot compensate for a terminal that is operating outside its listed conductor rating. The CEC Section 12 violation exists regardless of how well the stack is torqued.
The Dedicated Busbar – The Professional Standard
What a busbar does: A busbar is a solid block of tinned copper with multiple high-torque studs – each stud rated for one conductor of a specified gauge. The battery connects to the busbar with one clean cable. The inverter, MPPT, DC fuse block, and any other loads each get their own dedicated stud on the busbar. Every connection is a single lug on a single stud full contact area, minimum resistance, correct torque, independent serviceability.
The single cable from battery to busbar: The battery positive terminal connects to the busbar positive terminal with one cable typically the main 4/0 AWG homerun through the Class T fuse. One conductor on the battery terminal. One conductor on the busbar input terminal. Both connections within their listed ratings. This is the foundation of the busbar solar system architecture.
The Victron Lynx Power-In as the positive busbar: The Victron Lynx Power-In is a M10 stud busbar designed for 48V off-grid systems four M10 input positions rated for 1,000A continuous on the positive bus. Each position accepts one cable with one lug no stacking. The Lynx Power-In connects to the Victron Lynx Distributor which provides individually fused output positions for the inverter, MPPT, DC loads, and monitoring equipment.
The Blue Sea Systems HD 600A Disconnect in the busbar architecture: The main battery disconnect belongs between the battery terminal and the busbar not between the busbar and individual loads. Battery positive → Class T fuse → Blue Sea HD 600A Disconnect → busbar positive input. One conductor at the battery terminal. One conductor at the fuse. One conductor at the disconnect. One conductor at the busbar input. Every connection is a single lug on a rated terminal.

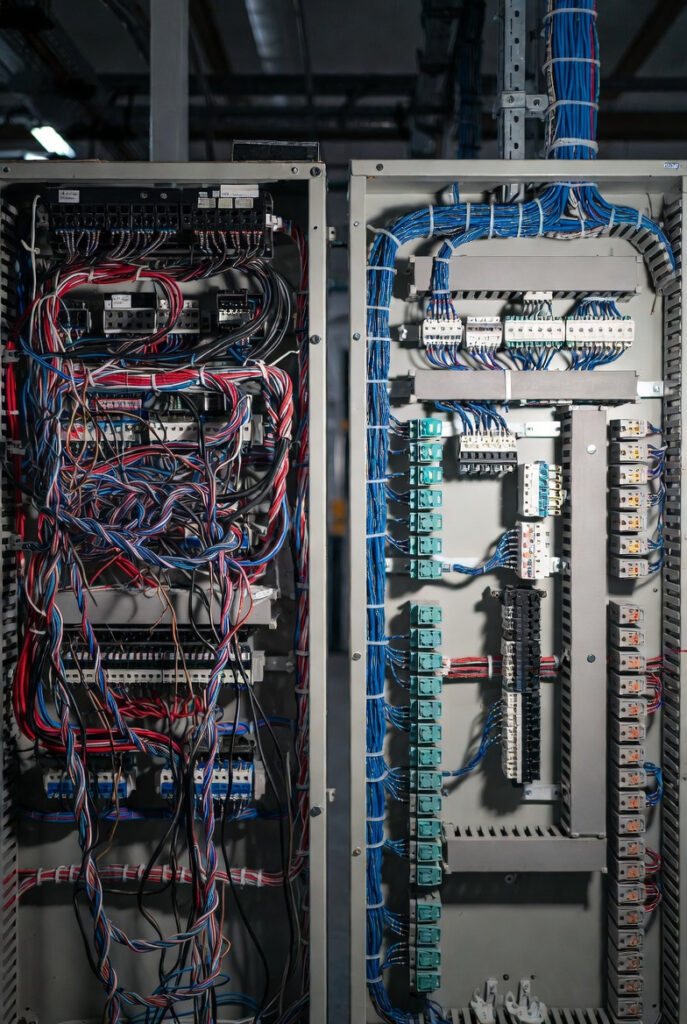

I showed a client the before and after of their distribution architecture during a system redesign last spring. Before: four lugs stacked on the battery positive stud, two lugs stacked on the negative stud, the inverter cable crossing the MPPT cable, nothing labelled, no serviceability. After: one 4/0 AWG cable from battery positive to busbar input, inverter on its own busbar stud, MPPT on its own busbar stud, DC fuse block on its own busbar stud. The client looked at the after layout and said: I can actually see what goes where. That is the busbar solar system standard every conductor visible, every connection independent, every stud within its listed rating. As covered in our Battery Fortress guide the enclosure design must accommodate a properly specified busbar not require lug stacking because of insufficient space.
The Busbar Selection – Blue Sea vs Victron vs Generic
The Blue Sea Systems standard: Blue Sea Systems busbars are UL-listed, tinned copper, rated for marine and DC power distribution environments the same listing standard required for a compliant busbar solar system. Blue Sea offers busbars in 150A, 250A, and higher ratings with 6-10 stud positions. The listing ensures the stud torque rating, the copper rating, and the insulation material are all appropriate for the current levels in a 48V off-grid system.
The Victron Lynx ecosystem: The Victron Lynx Power-In and Lynx Distributor are the professional standard for Victron-based busbar solar system builds. The Lynx Distributor adds individual MEGA fuse protection for each output each circuit is independently protected and independently serviceable. The Lynx ecosystem is the preferred busbar architecture for any system with a Cerbo GX and VRM monitoring.
Why generic busbars fail: Unrated generic busbars aluminum construction, unknown copper thickness, no UL listing, unknown stud torque rating are not suitable for a compliant busbar solar system. The listing is what makes the busbar an acceptable termination point under NEC 110.14 and CEC Section 12. An unlisted busbar is no better than a stacked battery terminal from a code compliance standpoint.
NEC 110.14 and CEC Section 12 – The Full Compliance Standard
NEC 110.14 – USA: National Electrical Code Section 110.14 requires that all electrical connections be made at terminals that are suitable for the conductors connected suitable for the conductor material (copper), suitable for the conductor gauge, and suitable for the number of conductors. A UL-listed busbar with individual studs rated for one conductor each satisfies NEC 110.14 completely. A stacked battery terminal does not regardless of the stud size or the torque applied.
CEC Section 12 – Canada: The Canadian Electrical Code Section 12 connection requirements apply to every terminal in the busbar solar system the battery terminal, the busbar input, each busbar stud, and each load connection. Compliance requires that every terminal be used within its listed conductor rating. The busbar solar system architecture one cable from battery to busbar, one lug per stud for every load satisfies CEC Section 12 at every connection point in the system.
Quick Reference – Busbar Solar System Architecture
| Connection Point | Correct Standard | Code Violation |
|---|---|---|
| Battery positive terminal | One 4/0 AWG cable to busbar | Multiple lugs stacked |
| Battery negative terminal | One 4/0 AWG cable to negative busbar | Multiple lugs stacked |
| Busbar positive — inverter | One dedicated stud — one lug | Shared stud with other loads |
| Busbar positive — MPPT | One dedicated stud — one lug | Shared stud with inverter |
| Busbar positive — DC loads | One dedicated stud — one lug | Tapped from inverter cable |
| Busbar material | UL-listed tinned copper | Unlisted aluminum generic |
| Stud torque | Per manufacturer spec — typically 10-14 Nm | Hand-tight or unknown |
Pro Tip: Label every busbar stud immediately after installation before the cable is connected. Use Brother P-Touch TZe-S laminated tape: INVERTER +, MPPT +, DC LOADS +, SPARE. The label goes on the busbar body adjacent to the stud not on the cable. When you need to disconnect the inverter for service you identify the correct stud by the busbar label not by tracing the cable. As covered in our Solar System Labeling guide the label is the system’s memory for the Next Guy and in a busbar solar system the Next Guy needs to know which stud is which before touching anything.
The Verdict
A busbar solar system eliminates the lug stacking fire hazard with one clean architectural decision: one cable from battery to busbar, one lug per stud for every load.
The clean distribution layout to implement today:
- Battery positive → Class T fuse → main disconnect → busbar positive input one conductor at every terminal
- Inverter, MPPT, DC fuse block each on its own dedicated busbar stud one lug per stud
- Label every stud before connecting any cable the system’s serviceability depends on it
Your battery is the heart. The busbar is the aorta. Do not clog it with a stack of lugs.
