A powerful inverter is useless if it is unsafe. Proper solar inverter grounding is the difference between a reliable off-grid home and an electrical hazard that can damage sensitive electronics, trip GFCI outlets randomly, and create a shock risk when you least expect it.
Think of it like a vehicle’s frame ground. Without it your lights flicker, sensors go haywire, and the whole system behaves unpredictably. Electrical current always wants to return home if you do not give it a clean path it will find one on its own. Sometimes through you.
When I first wired the inverter in the Rockwood setup I skipped the chassis ground figured the DC negative connection was enough. Three weeks later the GFCI outlet in the bathroom kept tripping for no reason. Two hours of diagnosis. The fix was a single wire and 15 minutes of work. Grounding is not optional.
Solar Inverter Grounding: The Three Connections You Need
There are three distinct grounding connections in an off-grid inverter system. Most beginners know one of them. All three are required for a safe functional installation.
Connection 1 – Chassis Ground (Equipment Ground)
The metal case of the inverter must be connected to the system ground. This is the safety net if a fault develops inside the inverter and the live conductor touches the metal case that ground connection provides a low-resistance path for fault current to flow safely to ground rather than through the person touching the case.
Wire the inverter’s chassis ground lug to the DC negative busbar or a dedicated system ground bus. Use wire sized at minimum half the cross-section of the battery cables for a 12V system with 2/0 battery cables use at least 6AWG for the chassis ground.
Connection 2 – DC Negative to Ground
On systems above 50V DC the DC negative should be bonded to the system ground. On 12V and 24V systems this is optional under most codes but recommended practice. Bond DC negative to the same ground bus that the chassis ground connects to. This ensures the entire DC system has a common reference point.
Connection 3 – Neutral to Ground Bond (AC Side)
This is the most misunderstood connection in off-grid solar and the one that causes the most GFCI problems when done incorrectly.
The one rule: There must be exactly one neutral-to-ground bond in the system. Not zero. Not two. One.
For a standalone off-grid inverter with no grid connection and no generator the bond lives at the inverter or at the AC distribution panel. Most quality inverters create this bond internally when operating from battery. Your AC panel should NOT have an additional N-G bond if the inverter already provides one.
The Floating Neutral Problem
What a floating neutral is: When an inverter has no neutral-to-ground bond the AC neutral is floating it has no reference to ground. This creates ghost voltages apparent voltages between neutral and ground that confuse GFCI outlets, cause electronic equipment to behave erratically, and create a latent shock hazard.
What you will observe with a floating neutral:
- GFCI outlets tripping randomly with no apparent cause
- Sensitive electronics reporting power quality errors
- A multimeter between neutral and ground shows unexpected voltage anything above 2–3V indicates a floating neutral problem
- Appliances humming or buzzing in ways they do not on utility power
The ghost voltage explained: On a floating neutral system stray capacitance in the inverter’s internal circuitry creates a voltage between neutral and ground often 30–60V. This is not enough to trip breakers or harm appliances directly but it is enough to confuse GFCI protection circuits which work by detecting current imbalance between hot and neutral.
The fix: Verify that your inverter provides a neutral-to-ground bond internally check the manual or test with a multimeter between N and G terminals on the AC output with the inverter running. Reading should be near zero. If it reads 30–60V your inverter has a floating neutral and you need to add a single N-G bond in your AC distribution panel.
Common Grounding Mistakes in Off-Grid Systems
Mistake 1 – No chassis ground at all: The most common omission. The inverter case is floating — if a fault develops inside the inverter the case becomes energized. Anyone touching it receives a shock. Fix: wire chassis ground lug to ground bus immediately.
Mistake 2 – Multiple neutral-to-ground bonds: Bonding N-G at the inverter AND at the AC panel creates parallel current paths on the ground conductor a code violation and safety hazard. GFCI outlets will trip constantly. Fix: one N-G bond only typically at the inverter for standalone off-grid systems.
Mistake 3 – Ground rod too small or poorly installed: A standard 8-foot copper ground rod driven into frozen Ontario soil in January has dramatically higher resistance than the same rod in warm moist soil. The ground rod must penetrate below the frost line in Ontario and Minnesota that means 4-5 feet below grade minimum with 8-10 feet being the practical standard. If your installation is in deep freeze country consider a buried grounding plate as a supplement to the vertical ground rod.
Mistake 4 – Corroded ground connections: In Ontario cabin and cottage installations ground connections are exposed to humidity, freeze-thaw cycles, and road salt. A corroded ground connection that looked solid at installation may have developed high resistance over one or two winters. Inspect all ground connections annually and clean with a wire brush before reinstalling.
GFCI Compatibility The Most Common Symptom
If your inverter installation has random GFCI tripping the cause is almost always a grounding error. Here is the diagnostic sequence:
Step 1 – Check for multiple N-G bonds: With the system running measure voltage between N and G at the AC panel. Near zero means one clean bond. Significant voltage means floating neutral. Continuity between N and G at two different points means double bonding.
Step 2 – Check chassis ground resistance: With the system powered down measure resistance between the inverter chassis and the DC negative busbar. Should read near zero ohms. Any measurable resistance indicates a corroded or loose chassis ground connection.
Step 3 – Check ground rod continuity: Measure resistance between the ground bus and a known earth ground reference. In Ontario winter conditions this test may show higher than expected resistance due to frozen soil this is why multiple ground rods or a grounding plate is recommended for cold climate installations.
The GFCI fix in most cases: Add or correct the N-G bond so there is exactly one in the system at the right location. Most random GFCI tripping in off-grid systems is resolved by this single correction.
Mobile vs Cabin Grounding
The grounding rules differ between mobile installations and permanent cabin installations.
Van and RV installations: The N-G bond lives at the inverter not at a ground rod. There is no practical earth ground in a mobile installation. The vehicle chassis serves as the ground reference. The inverter chassis must be bonded to the vehicle chassis. Shore power introduces an external N-G bond quality inverters handle this automatically with an internal bonding relay.
Permanent cabin installations: A physical earth ground rod is required. The N-G bond may live at the inverter or at the main AC panel but not both. The ground rod must penetrate below frost line for Ontario, Minnesota, and Montana installations. Bond the DC negative to the AC ground system for a unified reference.
The Ontario Cold Climate Ground Rod Reality
This is the cold climate detail completely absent from most grounding guides.
Frozen ground resistance: Soil electrical resistance increases dramatically as temperature drops. Near-surface soil at -10°C may have 10–50× higher resistance than the same soil at +10°C. A ground rod that provides excellent fault protection in summer may be nearly useless in a January freeze if it does not penetrate below the frost line.
The frost depth reality:
- Southern Ontario: 1.2–1.5 metres
- Northern Ontario, Minnesota, Montana: 1.5–2.0 metres
Your ground rod must extend below this depth to contact consistently conductive soil.
The grounding plate alternative: A buried copper grounding plate typically 300mm × 300mm or larger installed at or below frost depth provides significantly more surface contact with soil than a vertical rod. In areas with shallow bedrock or rocky soil where a deep rod cannot be driven a horizontal plate is the preferred solution. Bond the plate to the ground bus with 6AWG or larger copper wire.
Annual inspection: Every spring check all ground connections for corrosion before the system goes back into heavy use. The freeze-thaw cycle works loose ground lugs and corrodes copper faster than most climates. A loose corroded ground connection found in April is a fire hazard and shock risk prevented.
The 3-Step Grounding Audit

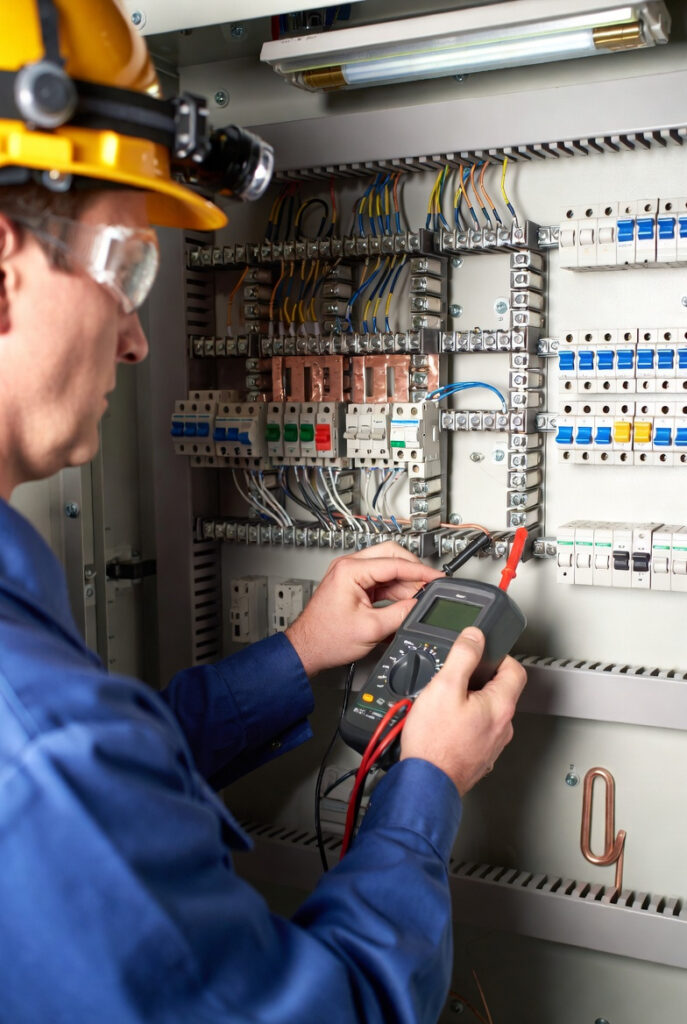

Use a multimeter to verify your grounding is correct:
Step 1 – Chassis to DC Negative: Set multimeter to DC voltage. Red probe on inverter chassis. Black probe on DC negative busbar. Reading should be 0V or very close. Any significant reading indicates the chassis is not properly bonded. Action: check chassis ground wire connection at both ends.
Step 2 – Neutral to Ground on AC Side: Set multimeter to AC voltage. Red probe on AC neutral terminal. Black probe on AC ground terminal at the distribution panel. Reading should be 0–3V maximum. Reading of 30–60V indicates floating neutral. Action: verify single N-G bond location.
Step 3 – Ground Rod Continuity: Set multimeter to resistance (ohms). One probe on ground bus. Second probe on a known earth reference a copper water pipe if available or a second test rod driven nearby. Reading should be under 25 ohms. High resistance in Ontario winter indicates inadequate ground rod depth. Action: inspect connections, consider grounding plate supplement.
Pro Tip: Never use aluminum wire for grounding connections in off-grid solar systems. Aluminum oxidizes when in contact with copper and the resulting aluminum oxide layer has extremely high resistance. A ground connection that tests correctly at installation may have developed high resistance within one or two seasons through galvanic corrosion at the copper-aluminum junction. Use only copper wire for all ground connections. The cost difference is negligible. The reliability difference over a decade of Ontario winters is significant.
The Verdict
Solar inverter grounding is not optional and it is not complicated. Three connections chassis ground, DC negative to ground, and a single neutral-to-ground bond on the AC side form the foundation of a safe electrical installation.
Skip the chassis ground and you are one internal fault away from an energized metal case. Double the N-G bond and you get GFCI outlets that trip constantly for no apparent reason. Install a shallow ground rod in Ontario clay and you lose most of your fault protection every January.
Wire it right once. Check it every spring. Those 15 minutes are the difference between a safe system and a liability.
