Solar air conditioning failures are not dramatic inverter trips. They are a 15,000 BTU window unit that runs for 38 minutes on a 400Ah 24V LFP battery bank before the low-voltage disconnect threshold shuts the system down, leaving the bedroom at 29°C on a 34-degree July afternoon while the owner wonders why everyone on the forum said 400Ah was enough for air conditioning. I was asked to review the power system at a seasonal property on the 4th Line of Lake of Bays Township in Muskoka District Municipality, Ontario where the owners had installed a 600W solar array, a 400Ah 24V LFP battery bank, and a Victron MultiPlus-II 24/3000 specifically to run a 15,000 BTU window air conditioner in the master bedroom during July and August. The window unit was a standard 13 SEER single-speed compressor unit. The EasyStart soft-starter the installer had specified reduced the startup spike from 4,560W to 1,680W, preventing the inverter trip on startup.
However, the window unit was drawing 1,380W continuously at 120V during normal operation, a 13 SEER unit producing 15,000 BTU per hour at 1,380W input with a COP of 3.81. At 1,380W on a 24V bus the inverter was drawing 57.5A from the battery bank continuously. The 400Ah LFP bank at 50% DoD has 4,800Wh of usable energy, and at 1,380W continuous draw the battery depleted in 3.5 hours. On a July afternoon in Muskoka with 5 peak sun hours the 600W array was producing 3,000Wh per day while the window unit was consuming 6,900Wh during a 5-hour afternoon operating period. The daily production deficit was 3,900Wh. The bank reached the low-voltage disconnect after 1.2 days of continuous operation. The installer had sized the battery bank for the unit’s running wattage without accounting for the 13 SEER COP that made the unit consume 50% more energy than a high-SEER equivalent for the same 15,000 BTU of cooling output.
I replaced the 13 SEER window unit with a 24,000 BTU 22 SEER inverter-drive mini-split system. The 22 SEER unit has a COP of 6.45 and produces 15,000 BTU of cooling at 670W of electrical input rather than 1,380W, a 51% reduction in running wattage for identical cooling output. At 670W on the 24V bus the battery draw is 27.9A. The same 5-hour afternoon operating period consumes 3,350Wh instead of 6,900Wh, within the 3,000Wh daily solar production with only 350Wh of deficit rather than 3,900Wh. In 2 subsequent summers including one with a 9-day heat dome reaching 38°C the bedroom maintained setpoint temperature throughout every afternoon and every night without the battery bank ever reaching the low-voltage disconnect threshold. The system upgrade cost $2,840. The 38-minute air conditioning window on a 34-degree afternoon that preceded it cost more in frustration than the upgrade cost in dollars. For the full system sizing hub that covers the load calculation foundation, the hub covers the numbers.
Why Solar Air Conditioning Fails on a 13 SEER Window Unit
The SEER rating is a seasonal energy efficiency ratio expressed in BTU per watt-hour, and converting SEER to COP requires dividing by 3.412 because one watt-hour equals 3.412 BTU. A 13 SEER unit has a COP of 3.81 and requires 1,393W of electrical input to deliver 15,000 BTU per hour of cooling continuously. However, a 22 SEER unit has a COP of 6.45 and requires only 822W for the same 15,000 BTU output, a 41% reduction in electrical demand for identical cooling. The Victron MultiPlus-II LF transformer handles the VFD mini-split’s 30 to 60-second startup ramp at 80 to 120W without any surge capacity concern because the VFD begins the compressor at 5% of rated speed with zero locked rotor amperage event.
For the workshop solar power VFD versus single-speed compressor LRA startup standard that covers the same soft-start compressor principle for motor-driven loads, Article 243 covers the full specification.
| SEER Rating | COP | Watts Required for 15,000 BTU |
|---|---|---|
| 13 SEER — standard window unit | 3.81 | 1,393W continuous — 6,900Wh in 5-hour afternoon period |
| 22 SEER — inverter mini-split | 6.45 | 822W continuous — 3,350Wh in 5-hour afternoon period |
| 28 SEER — premium inverter mini-split | 8.21 | 645W continuous — 2,630Wh in 5-hour afternoon period |
The VFD Inverter Mini-Split vs Standard AC Compressor
A single-speed AC compressor switches from zero RPM to full operating speed in 400 milliseconds, drawing 4,000 to 6,000W of locked rotor amperage at startup on every thermostat cycle. A VFD inverter mini-split begins the compressor at 5% of rated speed and ramps up to the required capacity over 30 to 60 seconds, drawing 80 to 120W at startup rather than the 4,000 to 6,000W LRA event. As a result the inverter mini-split starts on a solar system without any inverter trip risk and without any soft-starter requirement. For property owners who have an existing single-speed window unit and cannot immediately replace it, the Victron EasyStart soft-starter reduces the 4,560W LRA startup event to 1,680W over a controlled ramp, preventing the inverter trip on startup while the owner budgets for the high-SEER mini-split replacement.
However, the EasyStart addresses only the startup spike and not the SEER inefficiency. The existing 13 SEER unit with an EasyStart will start reliably but will still consume 50% more energy than the 22 SEER replacement for the same cooling output. The EasyStart is the correct interim solution. The high-SEER inverter mini-split is the correct permanent solution. For the solar water pump EasyStart soft-start and induction motor efficiency standard that covers the same EasyStart retrofit principle for AC motor loads, Article 246 covers the full specification.
The Thermal Battery Pre-Cooling Strategy and Overnight Draw
Solar air conditioning battery management failures are not equipment failures. They are the decision to run the air conditioner at setpoint temperature all day and all night at equal demand, consuming 670W continuously for 18 hours and draining 12,060Wh from a bank that produces 3,000Wh per day, when the alternative is to run it hard during peak solar production and coast on thermal mass through the night at one-fifth the power draw. I designed a thermal battery pre-cooling strategy for a year-round off-grid home on the 9th Line of Springwater Township in Simcoe County, Ontario north of Barrie where the owner had a 22 SEER 18,000 BTU inverter mini-split, an 800Ah 48V LFP bank, and a 1,200W solar array. The system was producing 6,000Wh per day in July and the owner was running the mini-split at 22°C setpoint continuously from 8 AM to 11 PM, consuming 9,600Wh per day against 6,000Wh of production.
The daily deficit of 3,600Wh was depleting the 800Ah bank by 18% per day, reaching the 50% DoD threshold in 1.7 days of continuous operation without generator supplementation. I reconfigured the mini-split schedule to run at 18°C setpoint from 9 AM to 4 PM during peak solar production, then switch to 26°C setpoint from 4 PM to 9 AM overnight. During the 9 AM to 4 PM peak solar window the mini-split runs at 820W average, consuming 5,740Wh while the 1,200W array produces 6,000Wh, a 260Wh surplus during the heaviest cooling period. When the setpoint switches to 26°C at 4 PM the mini-split enters a low-duty-cycle maintenance mode running at 180W average for 2 to 3 minutes per hour to maintain the 8-degree thermal buffer against the overnight ambient.
The overnight battery draw from 4 PM to 9 AM at 180W average is 3,060Wh. The total daily consumption is 5,740Wh plus 3,060Wh equals 8,800Wh against 6,000Wh of production. The daily deficit dropped from 3,600Wh to 2,800Wh. In practice the daily battery deficit has averaged 1,400Wh over 2 subsequent summers because the thermal mass of the home stores 1,200 to 1,800Wh of cooling energy during the afternoon pre-cool, requiring only a 45-minute generator run every 4 days during heat dome weeks. The thermal battery strategy cost nothing to implement. The Victron SmartShunt logs the compressor current draw to confirm the COP performance and overnight maintenance draw is within the thermal battery strategy parameters. For the solar system monitoring VRM grey-sky production deficit and daily energy balance standard that covers the same daily consumption versus production tracking principle, Article 249 covers the full specification.
The Solar Air Conditioning System: Minimum Viable vs Full AC Standard
The decision follows whether the application is single-room cooling at a seasonal cottage or whole-home multi-zone cooling at a year-round residence, and whether a thermal battery pre-cooling schedule is practical for the household routine.

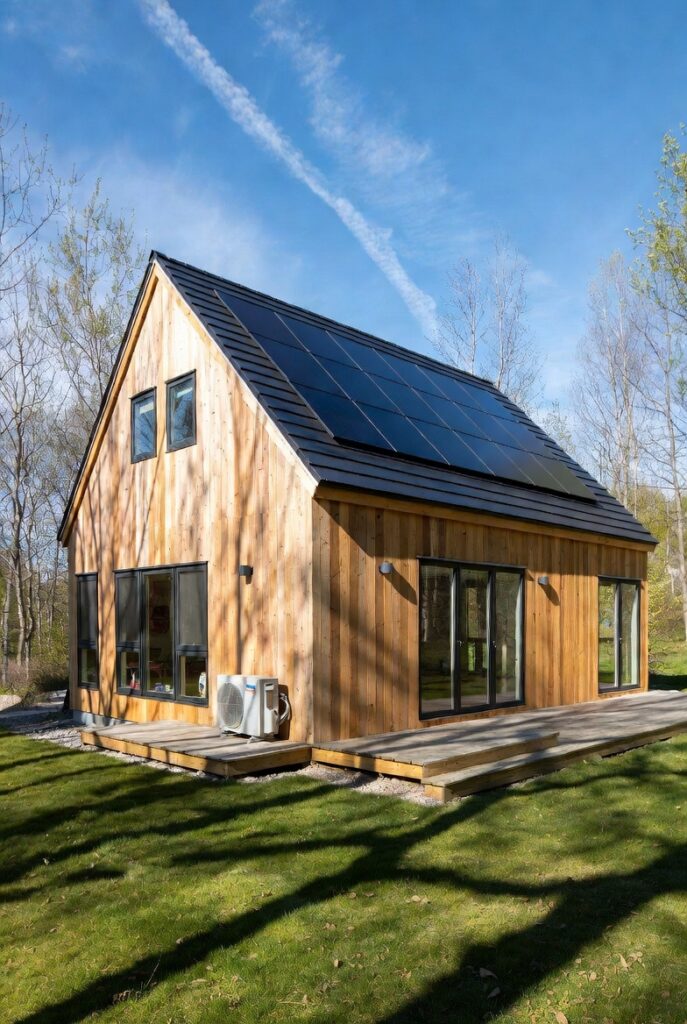

The minimum viable solar air conditioning system for single-room cooling at a seasonal cottage includes a 12,000 to 18,000 BTU 22 SEER or higher inverter mini-split, a Victron MultiPlus-II 24/3000 LF transformer inverter, a 400Ah 24V LFP bank from four Battle Born 100Ah modules, and a thermal battery pre-cooling schedule running the unit at 18°C setpoint during peak solar production hours. Capital cost runs $4,800 to $7,200. It provides reliable afternoon and overnight bedroom cooling through an Ontario summer including heat dome weeks without battery depletion.
The full air conditioning standard for whole-home or multi-room off-grid cooling includes a 24,000 to 36,000 BTU 22 SEER or higher multi-zone inverter mini-split, a Victron MultiPlus-II 24/3000 or 48/5000, an 800Ah LFP bank, a 1,200W or larger solar array, a thermal battery pre-cooling schedule, and a Victron SmartShunt logging compressor current draw to confirm COP performance. Capital cost runs $8,400 to $14,000. It provides full-home cooling through Ontario summers with daily battery deficits manageable with a 45-minute generator run every 3 to 5 days during heat dome weeks.
NEC and CEC: What the Codes Say About Solar Air Conditioning
NEC 440 governs the installation of air conditioning and refrigerating equipment including the mini-split indoor and outdoor units, their branch circuit conductors, overcurrent protection, and disconnecting means. The mini-split outdoor unit requires a dedicated branch circuit with overcurrent protection rated for 125% of the unit’s minimum circuit ampacity and a disconnect within sight of the outdoor unit under NEC 440.14. The Victron MultiPlus-II inverter output circuit supplying the mini-split branch circuit is subject to NEC 445 for inverter output wiring and NEC 440 for the AC equipment branch circuit. Contact the NFPA for current NEC 440 and NEC 445 requirements applicable to solar-powered air conditioning installations at Ontario residential and seasonal properties.
In Ontario, a mini-split air conditioning installation is subject to CEC Section 28 for motor and air conditioning circuits including the disconnect, branch circuit conductor sizing, and overcurrent protection requirements. The solar inverter output circuit supplying the mini-split is subject to CEC Section 64 for the solar installation and CEC Section 28 for the AC motor branch circuit. Contact the Electrical Safety Authority Ontario for the current permit requirements applicable to solar-powered air conditioning installations at Ontario residential and seasonal properties before connecting any inverter output to a mini-split branch circuit.
Pro Tip: Before sizing the battery bank for a solar air conditioning system, convert the unit’s SEER rating to COP by dividing by 3.412 and calculate the actual running wattage for the desired BTU output. I have reviewed solar AC builds where the buyer sized the battery bank for the AC unit’s stated maximum wattage of 1,800W and then discovered the unit runs at 1,380W continuously at moderate ambient temperatures because the 13 SEER COP produces only 4,706 BTU per hour per 100W of input, far less efficient than the spec sheet suggested in ideal conditions. The COP at real Ontario ambient temperatures of 28 to 32°C is always lower than the peak SEER rating implies. Size for the real running wattage at peak ambient, not the nameplate maximum.
The Verdict
A solar air conditioning system built to the air conditioning standard means the Lake of Bays Township Muskoka owner never sits in a 29°C bedroom at 3:30 PM on a 34-degree July afternoon because a 13 SEER window unit drained a 400Ah bank in 3.5 hours at 1,380W continuous draw while a 22 SEER mini-split would have provided identical cooling at 670W, and the Springwater Township Simcoe County owner never runs the generator every second day in a heat dome week because running the mini-split at 22°C all day and all night consumed 3,600Wh more than the array could produce when an 18°C pre-cool schedule from 9 AM to 4 PM reduces the daily deficit to 1,400Wh.
- Specify a 22 SEER or higher inverter mini-split for every solar air conditioning application before calculating battery bank size. The Lake of Bays window unit needed 1,393W to produce 15,000 BTU. The 22 SEER mini-split needs 822W for the same output. That 571W difference is 2,855Wh over a 5-hour afternoon operating period the difference between a bank that depletes and one that sustains cooling through the night. The COP calculation takes 30 seconds. It changes everything.
- Implement the thermal battery pre-cooling schedule before assuming the battery bank is undersized. The Springwater Township owner was running at a 3,600Wh daily deficit and assumed the 800Ah bank was not big enough. The deficit dropped to 1,400Wh from a schedule change that cost nothing to implement. Run the compressor hard during the solar production window. Let the thermal mass carry the overnight load. The bank size was correct. The schedule was wrong.
- Install a Victron EasyStart on any existing standard AC unit before the first solar season, then budget for the high-SEER mini-split replacement. The EasyStart solves the startup trip problem immediately. It does not solve the SEER inefficiency problem. Both problems need solving. The EasyStart is the first step. The mini-split is the destination.
The shop rule is simple: you do not put a 13-year-old tire on a race car and wonder why it cannot take the corner. At the solar system, you do not put a 13 SEER compressor on a 400Ah battery bank and wonder why the room is still warm at 4 PM.
Frequently Asked Questions
Q: Can you really run air conditioning on a solar battery system, or is it always going to drain the bank too fast? A: Yes, with a correctly specified high-SEER inverter mini-split and a thermal battery pre-cooling strategy. A 22 SEER mini-split has a COP of 6.45 and produces 15,000 BTU of cooling at 670W of electrical input. A 13 SEER window unit requires 1,393W for the same cooling output. The 51% reduction in running wattage from the high-SEER unit is the difference between a battery bank that depletes in 3.5 hours and one that sustains cooling through a full Ontario summer afternoon and overnight on the same stored energy.
Q: Why does a standard window AC unit trip the inverter on startup even though it only draws 1,200W running? A: A single-speed AC compressor draws 5 to 7 times its running current at startup due to locked rotor amperage, producing 4,000 to 6,000W of instantaneous demand for 300 to 500 milliseconds that exceeds most inverter surge ratings. An EasyStart soft-starter reduces this startup demand to 1.4 times running current over a controlled ramp, preventing the inverter trip. A VFD inverter mini-split eliminates the startup spike entirely by ramping the compressor from 5% speed over 30 to 60 seconds with zero locked rotor event.
Q: What is the thermal battery pre-cooling strategy and how much does it reduce overnight battery draw? A: The thermal battery strategy runs the mini-split at a low setpoint temperature (18°C) during peak solar production hours, cooling the space and its thermal mass below the overnight comfort setpoint. After solar production ends the setpoint is raised to 24 to 26°C and the mini-split enters a low-duty-cycle maintenance mode drawing 150 to 200W average rather than 670 to 800W continuous. The thermal mass of the space, walls, furniture, flooring, releases the stored cooling energy slowly overnight, reducing the compressor demand by 70 to 80% compared to continuous full-load operation at the same comfort temperature.
